How to add change markup to the drawings (Procore Web)

Role

PCs

To link changes to drawings.

Once a change is received

a- Create a change event in Procore. See Coordinating manual

b- Create a folder in the Jobs folder

c- Upload the drawings to Procore Drawings tool

d- Upload the change file to the documents tool

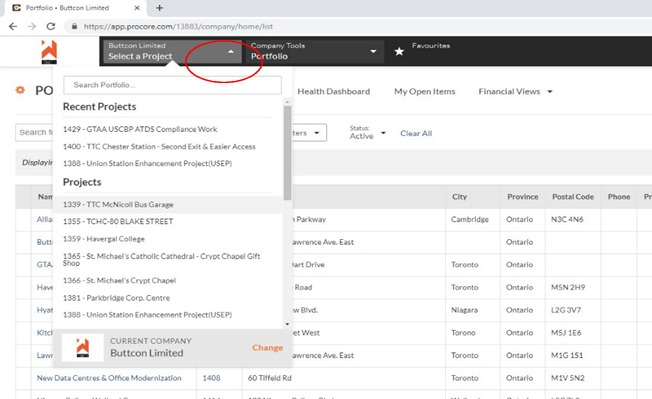

To upload the drawings to the Documents tool, Select a project from the dropdown.

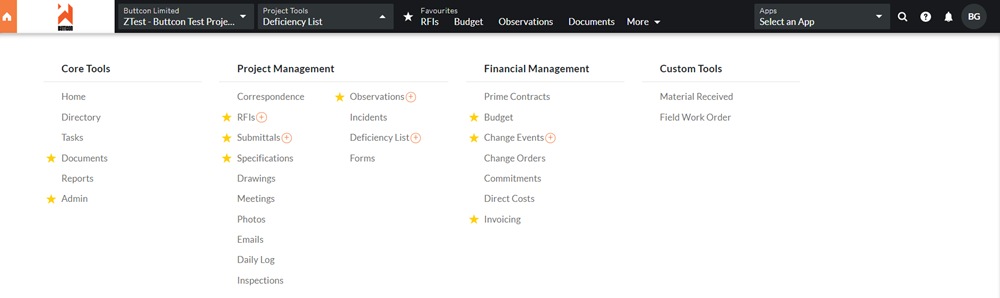

Select Documents under Core Tools.

Select 7.0 Construction Admin then 7.03 CE’s.

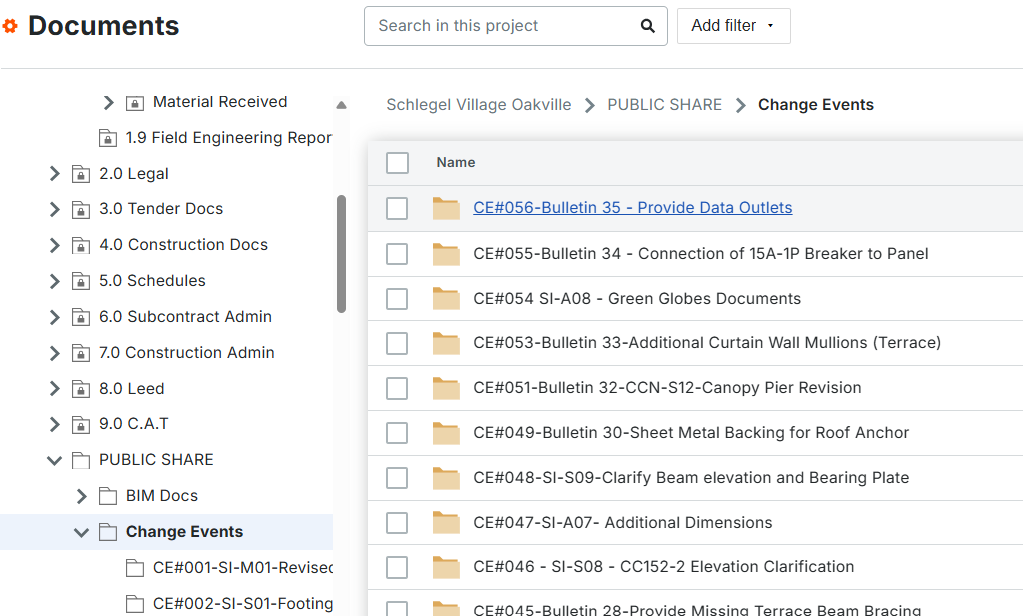

or folder can be created under PUBLIC SHARE as shown below

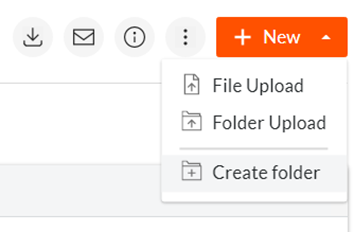

Create a folder for a change by select + New then Create folder

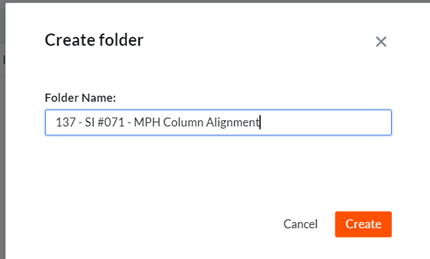

Type the change number and name under Folder Name and select Create. Drag and drop the changes file to folder created.

Drawings

Once a folder is created for a change and uploaded, go to the Drawings tool. Select Drawings under Project Management.

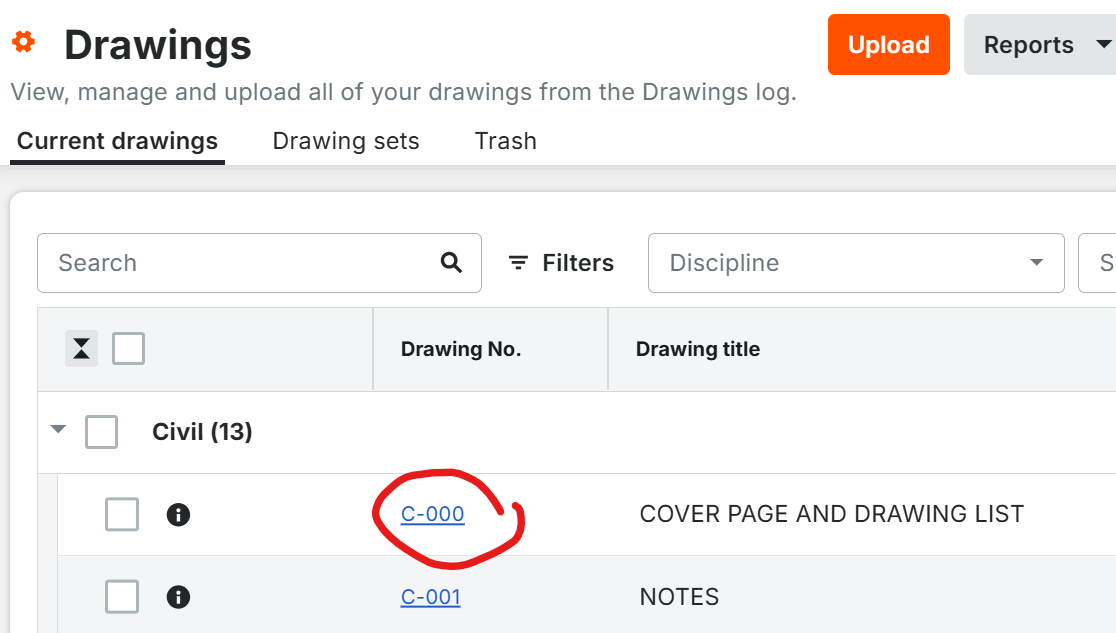

Upload the latest drawing from the change then Select a drawing to view a drawing and add mark up

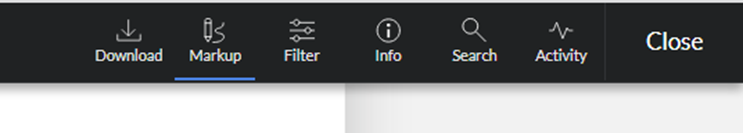

Select Markup

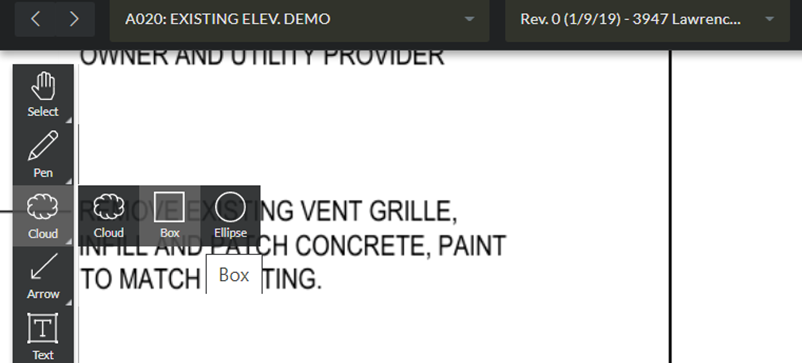

Select Box

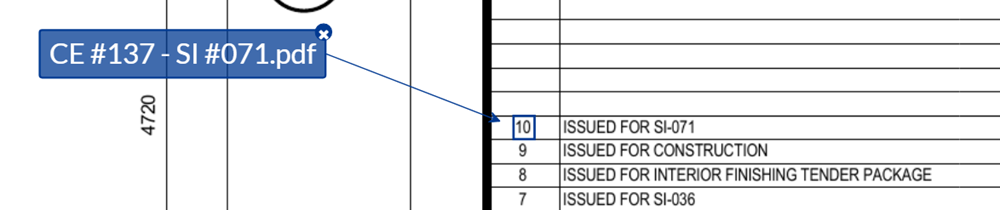

Add Blue box around the latest revision number and Select the Pin option, then Select Document.

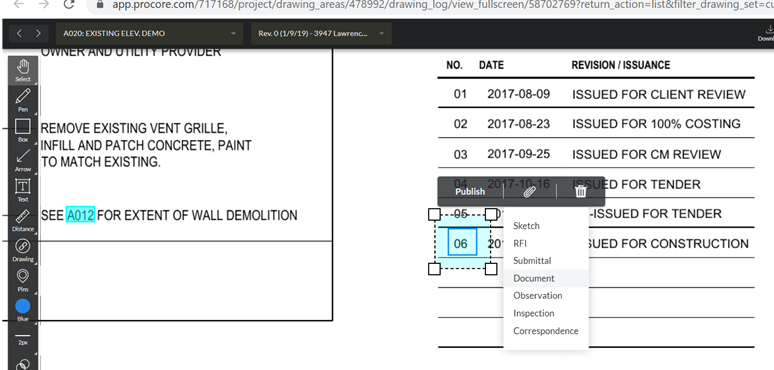

Select the change pdf for this revision that was uploaded to the documents. Select the markup and publish.

Also, see below how to copy or duplicate markups

Refer to the coordinating manual for further details regarding Drawings, see link below.
