How to Upload a Sketch and Link it to a Drawing (Procore Web)

Role

PCs

Objective

To upload a sketch to a drawing.

Steps

1. Navigate to your project's Drawings tool.
2. Click Info next to the drawing you want to add a sketch to.

3. Click Add Sketch.





4. Enter the following information:
5. Note: Fields with an asterisk (*) are required.

   • Number*: Specify a number for the sketch.

     Note: Sketch numbers must be unique per drawing.

   • Date*: Select a date that will be associated with the sketch.
   • Name*: Enter a name for the sketch.
   • Description: Enter a description for the sketch.

   • File*: Attach a file from your computer or from the project's Documents tool.

     Note: You can only upload a single file.

6. Click Create.

7. Click Open in viewer / Markup.
8. Click Markup.

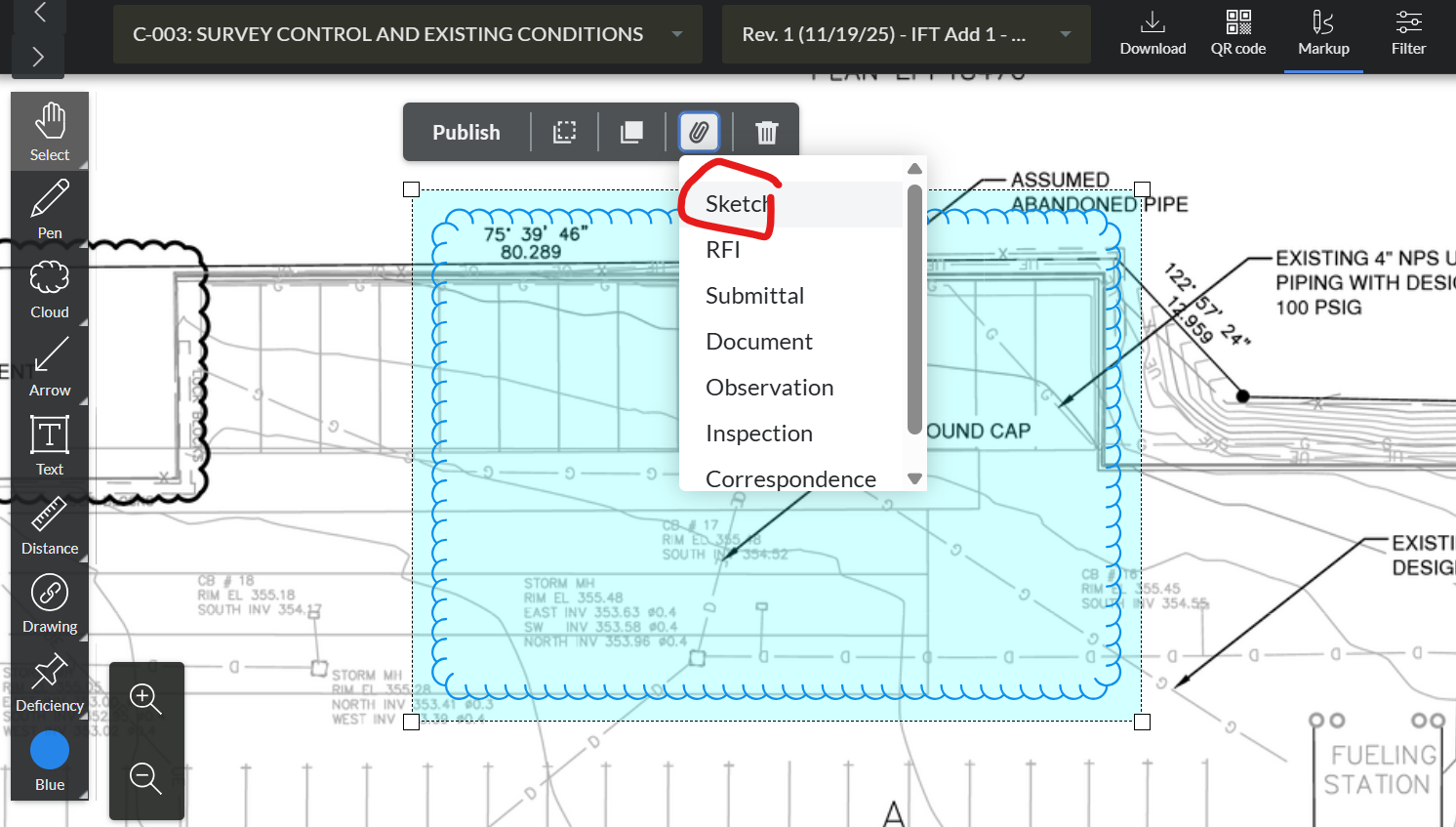

9. Add Cloud around the area/ section.
10. Select the markup. Click the pin option then Sketch.

11. Type the sketch name and select it.

12. Click Publish.

Refer to the coordinating manual for further details regarding Drawings, see link below.

Coordinating Manual Feb 2025.pdf
